[1]:

import earthkit.hydro as ekh
import matplotlib.pyplot as plt

StreamorderΒΆ

Streamorder is used in hydrology to indicate the level of branching in a river network and commonly used for topological properties and estimating river importance. There exist numerous different types of streamorder, with

  • Strahler streamorder

  • Shreve streamorder

available in the streamorder submodule.

[2]:

network = ekh.river_network.load("efas", "5", use_cache=False)

Cache disabled.
Cache disabled.

[3]:

da = ekh.streamorder.strahler(network)

da.plot.contourf(cmap="viridis", levels=100)
plt.show()

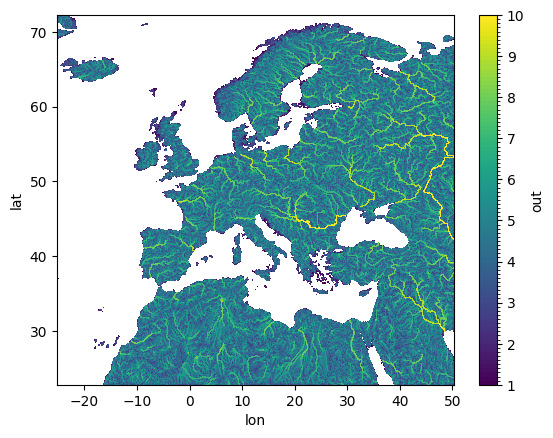

../_images/tutorials_streamorder_3_0.png
[4]:

da = ekh.streamorder.shreve(network)

da.plot.contourf(cmap="viridis", levels=100)
plt.show()

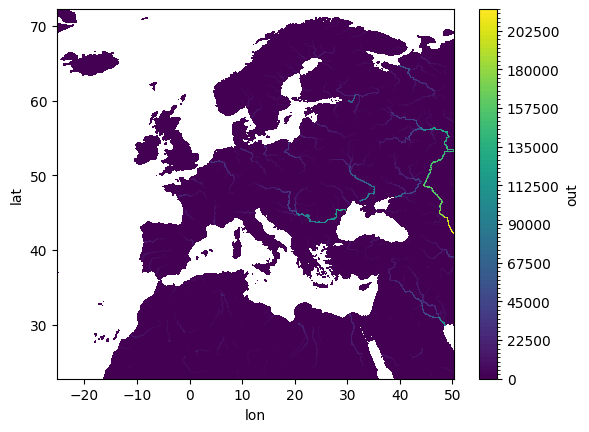

../_images/tutorials_streamorder_4_0.png
