Distance vs. length concepts

Understanding the distinction between distance and length is fundamental to working with river networks in earthkit-hydro. While these terms are often used interchangeably in everyday language, they represent fundamentally different concepts in hydrological network analysis.

Why this distinction matters

In many hydrological tools, distance and length calculations are conflated, which can lead to:

  • Incorrect routing time estimates

  • Errors in distance-decay calculations

  • Confusion at confluences and bifurcations

  • Inappropriate weighting schemes

earthkit-hydro makes this distinction explicit to enable more accurate and flexible analysis.

Node properties vs. edge properties

The fundamental difference lies in what is being measured:

Lengths are node properties

A length is associated with a grid cell or graph node itself. It represents the length of river channel within that cell.

  • One length value per node

  • Represents channel length within the cell

  • Remains constant even at confluences

  • Used for: channel residence time, friction calculations, node-based weighting

Distances are edge properties

A distance is associated with the connection (edge) between two nodes. It represents the distance traveled along the flow path from one node to another.

  • One distance value per edge (connection between nodes)

  • Represents distance between cell centers (or similar)

  • Can differ for each branch at confluences/bifurcations

  • Used for: travel distance calculations, path finding, edge-based weighting

Visual explanation

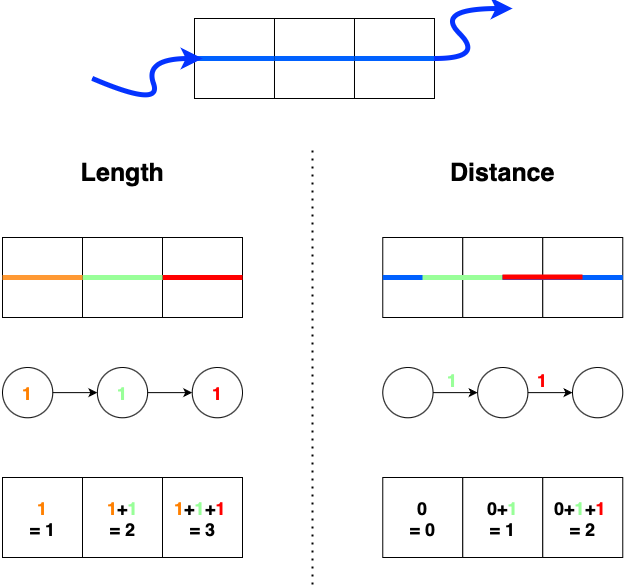

Consider this simple river network:

../_images/distance_length.png

In the highlighted segment:

  • Length = 3 (sum of channel lengths within the 3 cells)

  • Distance = 2 (number of connections/edges traveled)

Even for a straight channel with uniform cells, these values differ because:

  • Length accounts for the actual channel path within each cell

  • Distance counts the connections between cell centers

Implications at confluences

The distinction becomes especially important at confluences:

Scenario: Two tributaries meet at a confluence node.

  • The confluence node has one length (the channel length within that cell)

  • But there are multiple distances (one for each incoming branch)

This means:

  • A parcel of water traveling down tributary A experiences distance_A to the confluence

  • A parcel from tributary B experiences distance_B to the confluence

  • Both experience the same length when passing through the confluence cell

Why this matters: If you’re calculating travel time with distance-dependent decay (e.g., for pollutant attenuation), you need edge-based distances to correctly account for different paths to the confluence.

When to use each

Use lengths when:

  • Calculating channel residence time (velocity × length)

  • Applying friction or roughness coefficients

  • Computing channel storage capacity

  • Weighting by actual river channel amount

Use distances when:

  • Finding shortest/longest path between points

  • Calculating travel distance through the network

  • Implementing distance-decay functions

  • Routing based on connection topology

Mathematical formulation

For a path through nodes \(n_1, n_2, ..., n_k\):

\[ \begin{align}\begin{aligned}\text{Total length} = \sum_{i=1}^{k} L(n_i)\\\text{Total distance} = \sum_{i=1}^{k-1} D(n_i, n_{i+1})\end{aligned}\end{align} \]

Where:

  • \(L(n_i)\) is the length property of node \(i\)

  • \(D(n_i, n_{i+1})\) is the distance property of the edge from node \(i\) to \(i+1\)

Note that length is summed over \(k\) nodes, while distance is summed over \(k-1\) edges.

Relationship to graph theory

This distinction aligns with standard graph theory terminology:

  • Node weights (lengths) = properties of vertices

  • Edge weights (distances) = properties of edges

River networks are edge-weighted directed graphs where both node and edge properties matter for hydrological calculations.

Historical context

Many hydrological tools (including some versions of PCRaster) have traditionally used “distance” to refer to what is technically a length measurement, or conflated the two concepts. This simplification works for some analyses but breaks down for:

  • Complex routing schemes

  • Networks with varying cell sizes

  • Bifurcation handling

  • Distance-dependent processes

earthkit-hydro’s explicit distinction enables more sophisticated and accurate analyses while remaining clear about what is being calculated.

Practical example

Problem: Calculate pollutant concentration downstream, with 10% attenuation per unit distance traveled.

Wrong approach: Use lengths

# This uses channel length within cells
# Attenuation will be too high (counts length within destination cell)
result = ekh.upstream.sum(network, concentration * 0.9**lengths)

Correct approach: Use distances

# This uses distance between cells
# Attenuation correctly represents travel distance
result = ekh.upstream.sum(network, concentration * 0.9**distances)

The difference can be significant, especially in networks with variable cell sizes or long channels within cells.

Implementation in earthkit-hydro

earthkit-hydro provides separate APIs for distances and lengths:

  • ekh.distance.* - for edge-based distance calculations

  • ekh.length.* - for node-based length calculations

Both support:

  • Minimum and maximum (shortest/longest path)

  • Upstream and downstream directions

  • Custom weighting

See the how-to guides for practical usage examples.
