The earthkit ecosystem

Understanding how earthkit-hydro fits into the broader earthkit family helps you leverage the full power of the ecosystem.

What is earthkit?

earthkit [ECM22b] is a collection of Python tools for working with earth system data. Each component focuses on a specific domain:

  • earthkit-data: Data acquisition and access

  • earthkit-hydro: Hydrological analysis (this package)

  • earthkit-plots: Visualization and mapping

  • earthkit-transforms: Data transformations

  • earthkit-meteo: Meteorological calculations

Why the modular design?

Rather than one monolithic package, earthkit components are:

  • Focused: Each does one thing well

  • Independent: Use only what you need

  • Compatible: Designed to work together seamlessly

  • Maintainable: Smaller codebases, clearer purpose

Integration through xarray

The earthkit components integrate primarily through xarray DataArrays and Datasets. This means:

  • Metadata (coordinates, attributes) flows between components

  • No custom data structures to learn

  • Compatibility with the broader scientific Python ecosystem

Example workflow

Here’s how different earthkit packages work together in a typical hydrological analysis:

import earthkit.data as ekd
import earthkit.hydro as ekh
import earthkit.plots as ekp

# specify some custom styles
style = ekp.styles.Style(
    colors="Blues",
    levels=[0, 0.5, 1, 2, 5, 10, 50, 100, 500, 1000, 2000, 3000, 4000],
    extend="max",
)

# load data and river network
network = ekh.river_network.load("efas", "5")
da = ekd.from_source(
    "sample",
    "R06a.nc",
).to_xarray()["R06a"].isel(time=0).load()

# compute upstream accumulation
upstream_sum = ekh.upstream.sum(network, da)

# plot result
chart = ekp.Map()
chart.quickplot(upstream_sum, style=style)
chart.legend(label="{variable_name}")
chart.title("Upstream precipitation at {time:%H:%M on %-d %B %Y}")
chart.coastlines()
chart.gridlines()
chart.show()

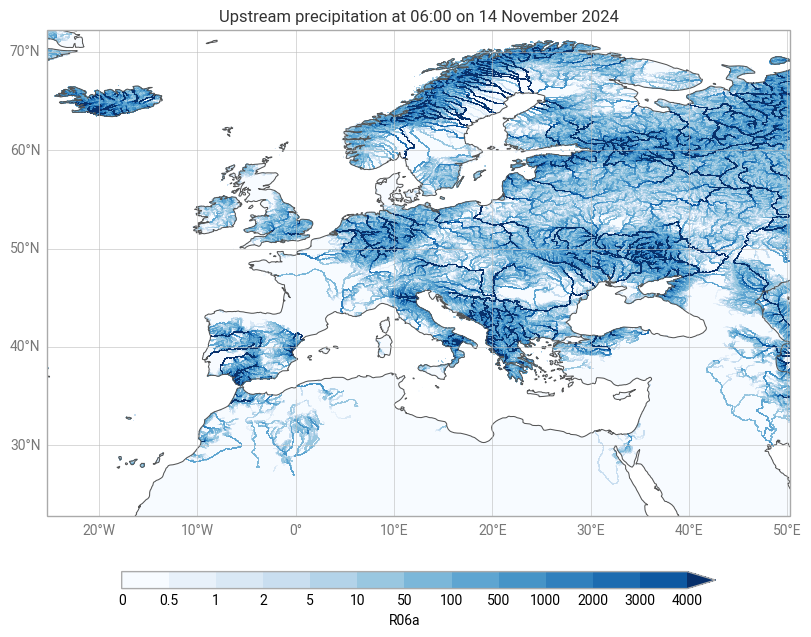

../_images/earthkit_example.png

In this example:

  1. earthkit-data fetches the precipitation data

  2. earthkit-hydro performs upstream accumulation

  3. earthkit-plots visualizes the result

The xarray DataArray flows through each step, preserving coordinates and metadata.

Benefits for your workflow

Using earthkit components together provides:

Consistency: Similar API design across components

Efficiency: No data format conversions between steps

Completeness: From data access to visualization in one ecosystem

Community: Shared user base and development practices

When to use earthkit-hydro standalone

You don’t need the full earthkit ecosystem to use earthkit-hydro. The library works perfectly well with:

  • Data loaded by other means (xarray.open_dataset, rasterio, etc.)

  • Visualization using matplotlib, cartopy, or other tools

  • Your existing data pipeline

earthkit integration is optional, not required.

import earthkit.data as ekd
import earthkit.hydro as ekh
import earthkit.plots as ekp

# specify some custom styles
style = ekp.styles.Style(
    colors="Blues",
    levels=[0, 0.5, 1, 2, 5, 10, 50, 100, 500, 1000, 2000, 3000, 4000],
    extend="max",
)

# load data and river network
network = ekh.river_network.load("efas", "5")
da = ekd.from_source(
    "sample",
    "R06a.nc",
)[0].to_xarray()

# compute upstream accumulation
upstream_sum = ekh.upstream.sum(network, da)

# plot result
chart = ekp.Map()
chart.quickplot(upstream_sum, style=style)
chart.legend(label="{variable_name}")
chart.title("Upstream precipitation at {time:%H:%M on %-d %B %Y}")
chart.coastlines()
chart.gridlines()
chart.show()
../_images/earthkit_example.png
