Raster and vector networks¶

earthkit-hydro supports both raster (gridded) and vector river networks. These network types have slightly different characteristics which necessitate some clarification.

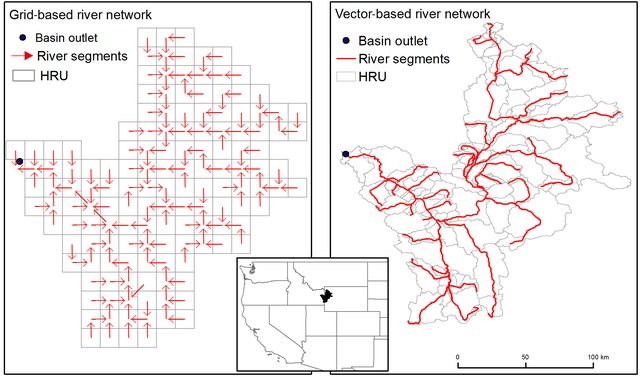

../_images/raster_vector_networks.jpg — *From:* [MCS+16]¶

Raster networks¶

Raster networks are the most common type of river network in earthkit-hydro. They are represented as a grid where each cell corresponds to a specific location in the river network. With these type of networks, it is often most natural to conduct river network operations directly on this grid.

import earthkit.hydro as ekh

# Load a raster river network
network = ekh.river_network.load("efas", "5")

field = np.ones(network.shape) # field on the river network grid

output = ekh.upstream.sum(network, field) # output on same grid

Vector networks¶

In vector networks, each river segment is represented as a node, and the network is defined by the connections between these nodes.

# vector field (1D) defined on the nodes of the river network
field = np.ones(network.n_nodes)

# output field is also 1D, defined on the nodes of the river network
output = ekh.upstream.sum(network, field, return_grid=False)

Switching between vector and raster¶

Raster networks can also be used as if they were vector networks, since internally the raster network is represented as a vector network. To allow users to work with both types of networks seamlessly, earthkit-hydro has the return_grid function argument, which is by default True. This allows the user to specify whether they want a gridded output (only available for raster networks), or a 1d-vector output.

Note that it is possible to mix gridded and raster inputs to functions.

# vector field (1D) defined on the nodes of the river network
field = np.ones(network.n_nodes)

# output field is a grid
output = ekh.upstream.sum(network, field)

Multidimensional inputs¶

Any leading dimensions of the data are treated as batch/vectorised dimensions, allowing for operations on multiple fields at once. This means that users can pass directly time series or other multi-dimensional data without needing to manually loop. The last dimensions are always assumed to be spatial i.e. either the grid dimensions, or the 1d vector dimension.

# vector field (1D) defined on the nodes of the river network
field = np.ones((3, 4, 5, network.n_nodes))

# output field is of shape (3, 4, 5, *network.shape)
output = ekh.upstream.sum(network, field)
