Integration with the earthkit system

earthkit-hydro is the hydrological component of earthkit [ECM22b]. It is designed to interplay with other earthkit components seamlessly, primarily via xarray integration.

Here is a simple example of using different earthkit packages together.

import earthkit.data as ekd
import earthkit.hydro as ekh
import earthkit.plots as ekp

# specify some custom styles
style = ekp.styles.Style(
    colors="Blues",
    levels=[0, 0.5, 1, 2, 5, 10, 50, 100, 500, 1000, 2000, 3000, 4000],
    extend="max",
)

# load data and river network
network = ekh.river_network.load("efas", "5")
da = ekd.from_source(
    "sample",
    "R06a.nc",
)[0].to_xarray()

# compute upstream accumulation
upstream_sum = ekh.upstream.sum(network, da)

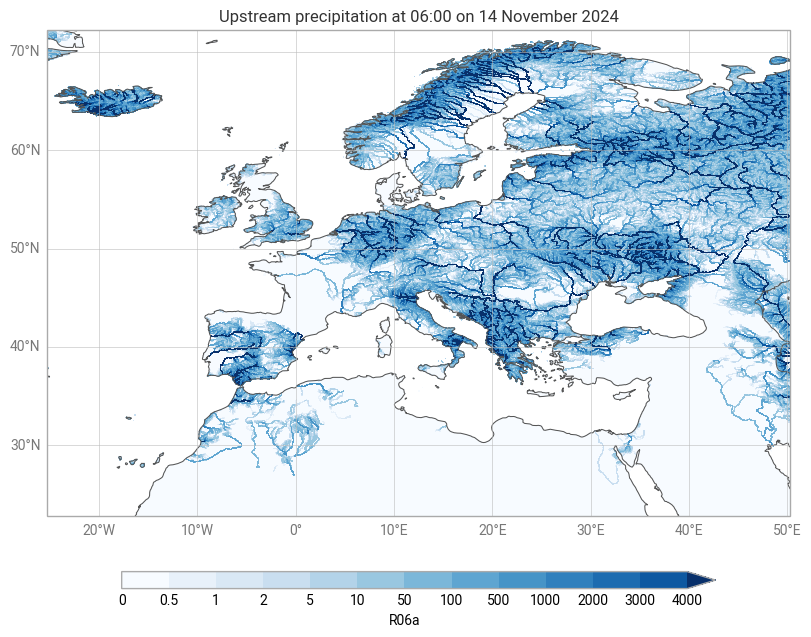

# plot result
chart = ekp.Map()
chart.quickplot(upstream_sum, style=style)
chart.legend(label="{variable_name}")
chart.title("Upstream precipitation at {time:%H:%M on %-d %B %Y}")
chart.coastlines()
chart.gridlines()
chart.show()
